Technische Daten AEROTOP® SG
Model range
AEROTOP®
AEROTOP®
AEROTOP®
Device type
SG10
SG12
SG14
Energy Efficiency Class
Energy Efficiency class* under average climate conditions W55/W35
A++ / A+++
A+++ / A+++
A+++ / A+++
ηs under average climate conditions W55/W35
[%]
141 / 193
150 / 206
151 / 183
Capacity control
ja
ja
ja
Heating Mode
Capacity range min - max
A7/W35
[kW]
3,9 - 12,9
3,9 - 15,5
3,9 - 18,2
Heating capacity nominal
[kW]
5,10
7,15
9,15
Power consumption nominal
[kW]
0,95
1,32
1,78
COP
5,35
5,40
5,13
Capacity range min - max
A2/W35
[kW]
3,4 - 12,2
3,4 - 14,7
3,4 - 17,2
Heating capacity nominal
[kW]
5,40
8,20
10,30
Power consumption nominal
[kW]
1,21
1,83
2,40
COP
4,47
4,47
4,29
Capacity range min - max
A-7/W35
[kW]
2,6 - 9,7
2,6 - 11,9
2,6 - 14,1
Heating capacity nominal
[kW]
8,30
11,00
13,90
Power consumption nominal
[kW]
2,40
3,33
4,91
COP
3,46
3,30
2,83
Capacity range min - max
A-7/W55
[kW]
2,3 - 9,3
2,3 - 11,3
2,3 - 13,5
Heating capacity nominal
[kW]
7,70
10,53
13,30
Power consumption nominal
[kW]
3,36
4,39
6,43
COP
2,29
2,40
2,07
Renewable Source: Air
Fan type
Axial
Axial
Axial
Volume air flow (min/max)
[m³/h]
2000 - 5300
2000 - 5700
2000 - 6000
Air inlet temperature min.
[°C]
-20
-20
-20
Air inlet temperature max.
[°C]
35
35
35
Operation limits Air / Water
[°C]
-20°C / 45°C
-10°C / 60°C
35°C / 60°C
-10°C / 60°C
35°C / 60°C
-20°C / 45°C
-10°C / 60°C
35°C / 60°C
-10°C / 60°C
35°C / 60°C
-20°C / 45°C
-10°C / 60°C
35°C / 60°C
-10°C / 60°C
35°C / 60°C
Electrical Data
Rated voltage load circuit
[V/Ph/Hz]
400 +/-6% /3 /50
400 +/-6% /3 /50
400 +/-6% /3 /50
Rated voltage control cirtcuit
[V/Hz]
230 / 50
230 / 50
230 / 50

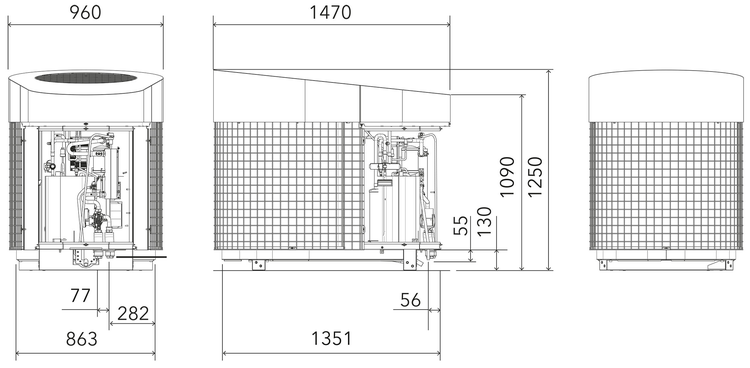

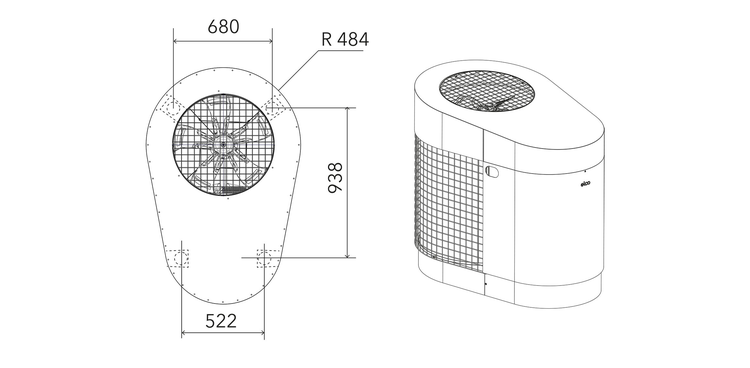

Dimensions / Weight
Height
[mm]
1140 - 1290
1140 - 1290
1140 - 1290
Width
[mm]
960
960
960
Depth
[mm]
1470
1470
1470
Weight INOX
[kg]
255
255
255
Weight INOX OPTIC
[kg]
240
240
240
Refrigerant Circuit
Compressor type
Twin Rotary
Twin Rotary
Twin Rotary
Refrigerant
R410A
R410A
R410A
Refrigerant filling
[kg]
4,265
4,265
4,265
GWP
2088
2088
2088
CO2 equivalent
[t]
8,91
8,91
8,91
Oil for refrigerant circuit
VG74
VG74
VG74
Oil filling refrigerant circuit
[l]
1,4
1,4
1,4
Sound
Sound power level LWA outdoor
(EN 12102)
dB(A)
53
54
58
Sound power level LWA outdoor
(Silent Mode)
dB(A)
51
51
55
*Energy efficiency class according to Regulation EU 811/2013. Product label range: A+++ to D
